Relief wall tiles

Information

What they are
A handmade ceramic tile, about 14 cm square, pressed by hand with a raised pattern and finished in a single glaze. The pattern is not printed: it is formed as a relief in the clay.

Why designers use them
– Light draws the pattern: the 3-dimensional surface of the tile means that the design appears in light and shadow, changing throughout the day.
– A wall that changes through the day: morning sun, evening lamplight and a downlight each combine with the tiles to create a different kind of wall.
– Works well with grazing light (light positioned close to the vertical surface): light from the side or from above, such as a window or a downlight, bring out the relief most strongly.
– Texture over colour: with one solid glaze per tile, the surface contains the design, so even a pale wall has depth.
– Combines with print: the relief shapes match our screen-printed designs, so the two can share a wall.

To start, tell us about your space and what inspires you.

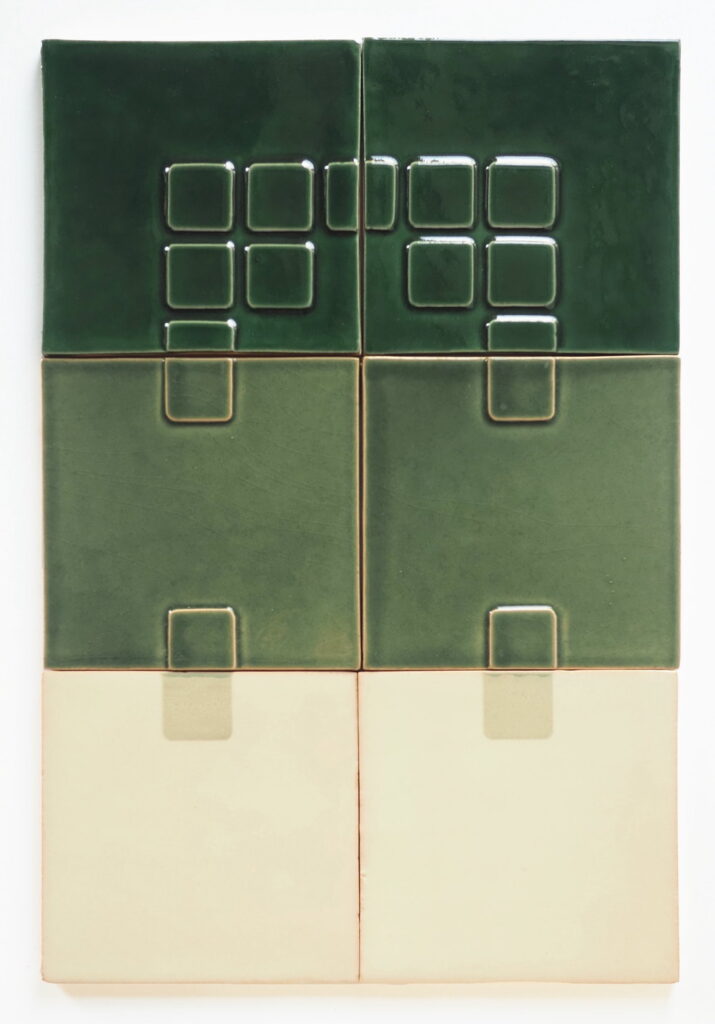

A two by three panel of Smink Studio tiles in dark green and cream, combining raised square Relief motifs with plain glazed tiles, arranged as wall panelling.

Photos

Concrete trough basin and oval mirror on a wall of charcoal Smink Studio relief tiles, a bathroom by Natalie Visser.
Photography: Miranda Koopman @mirandakoopman.photography

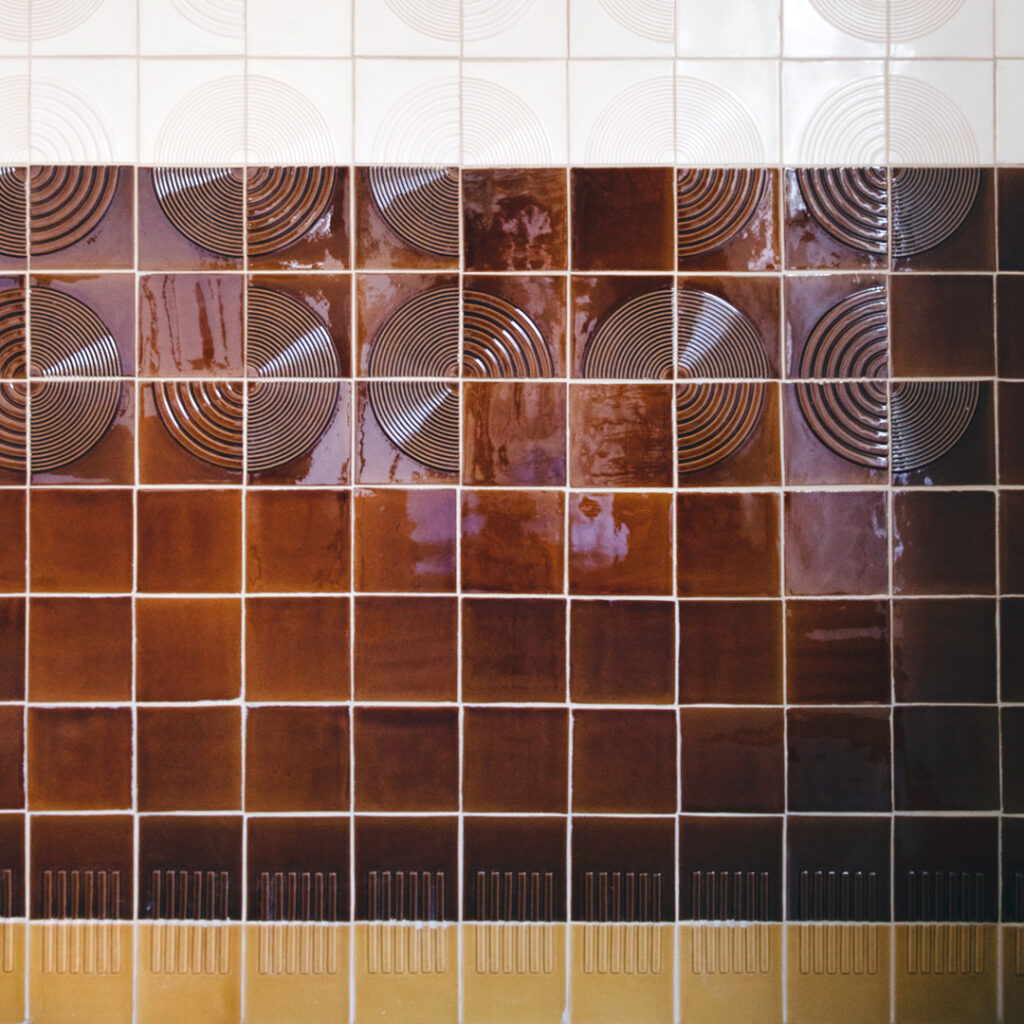

Brown glazed relief tiles: rows of rippled circles above plain tiles, with a band of white tiles at the top
Photography: Miranda Koopman @mirandakoopman.photography

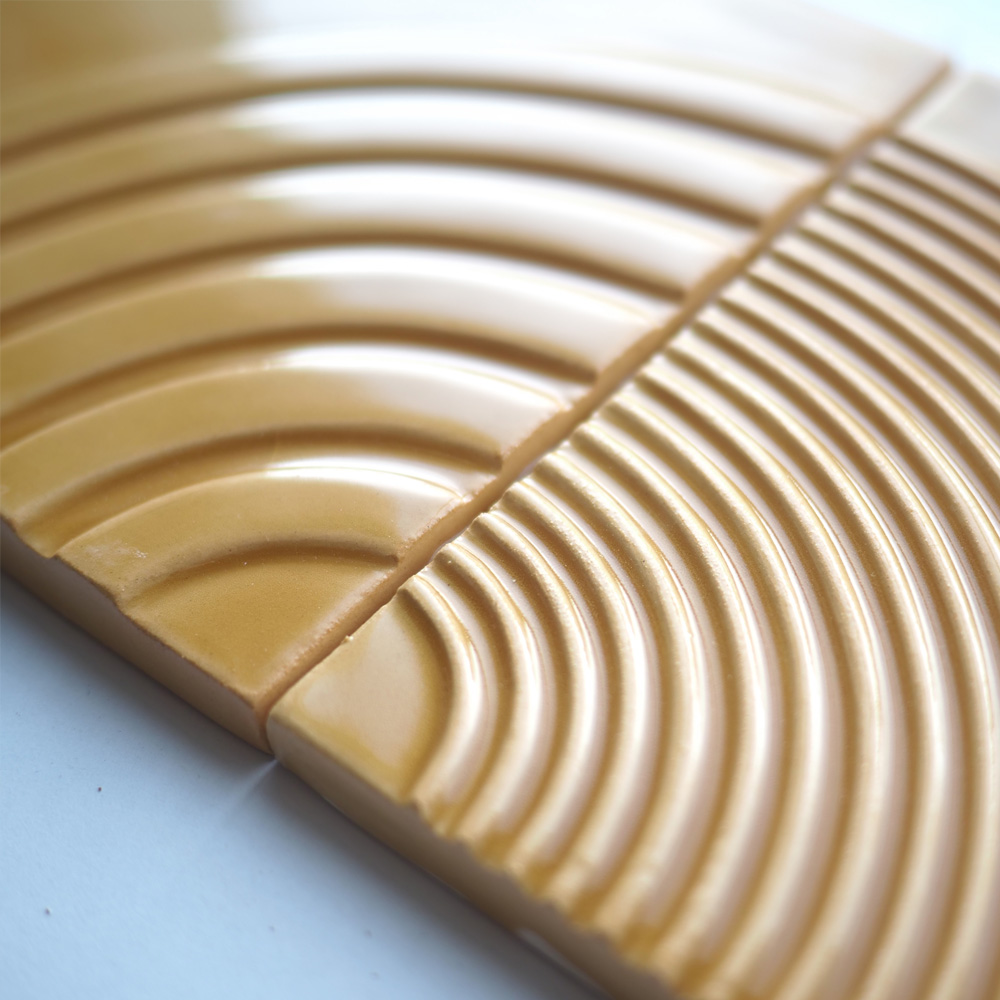

Close-up of mustard-yellow glazed relief tiles with raised concentric arcs
Two blush pink Smink Studio Relief tiles side by side, one with wide vertical flutes and one with fine horizontal ribs.

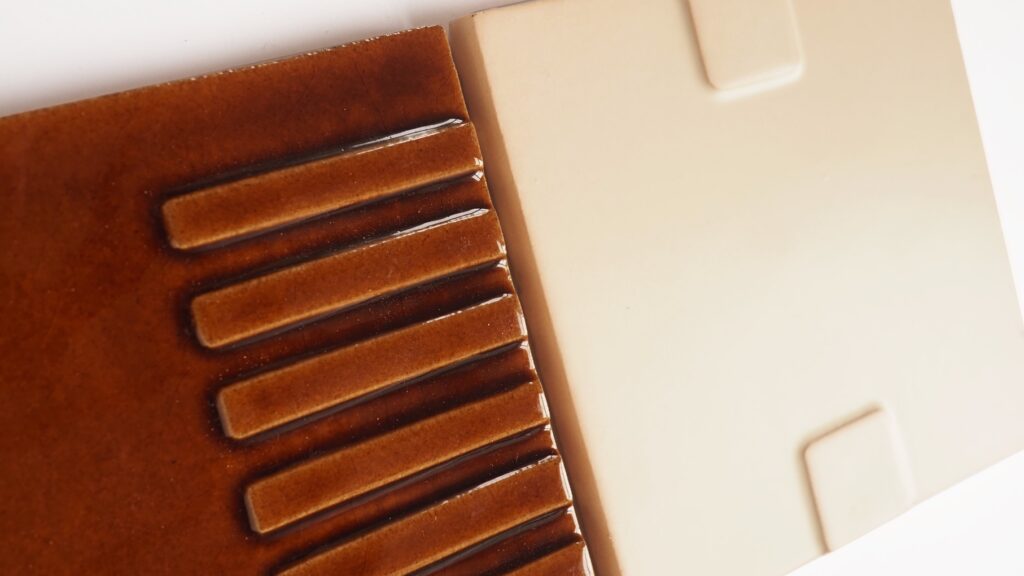

Close-up of a brown glazed relief tile with raised bars beside a cream relief tile

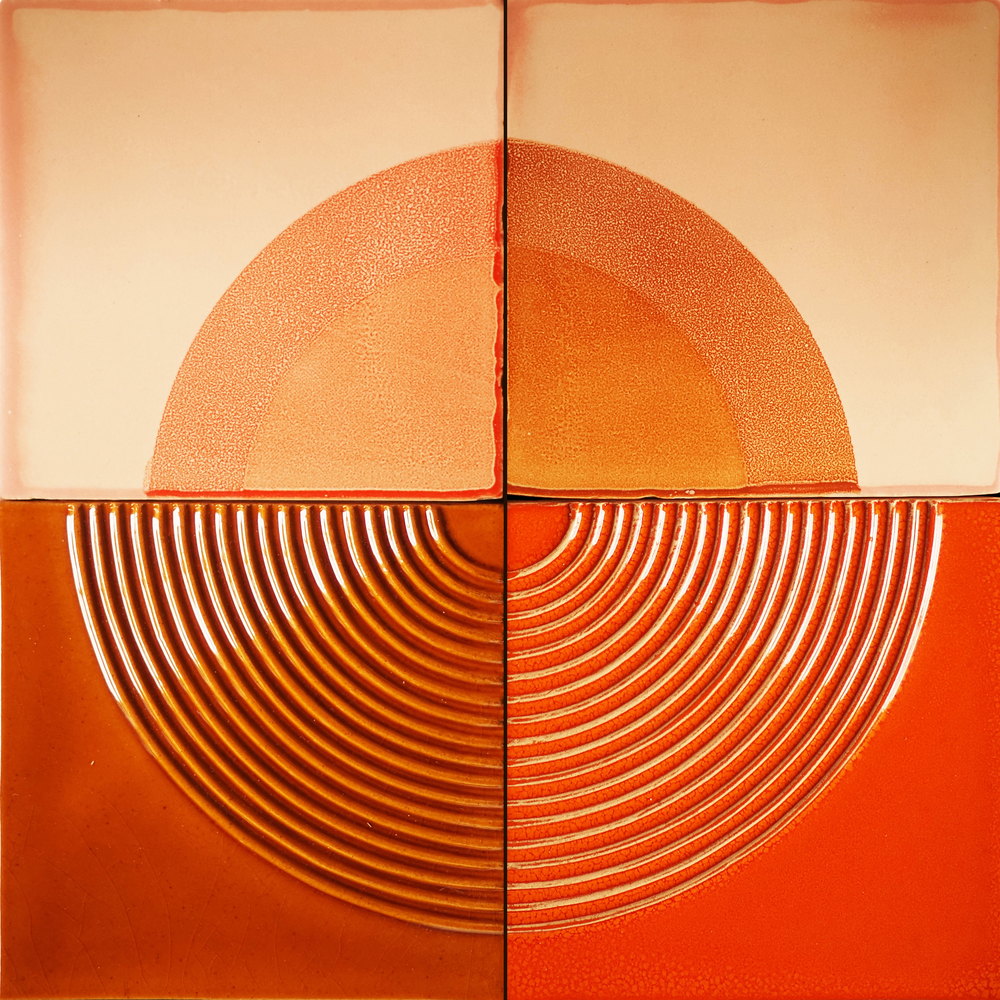

Four Smink Studio tiles forming a single composition, with a speckled orange half-circle screen-printed across the upper tiles and a raised concentric arc Relief pattern below.

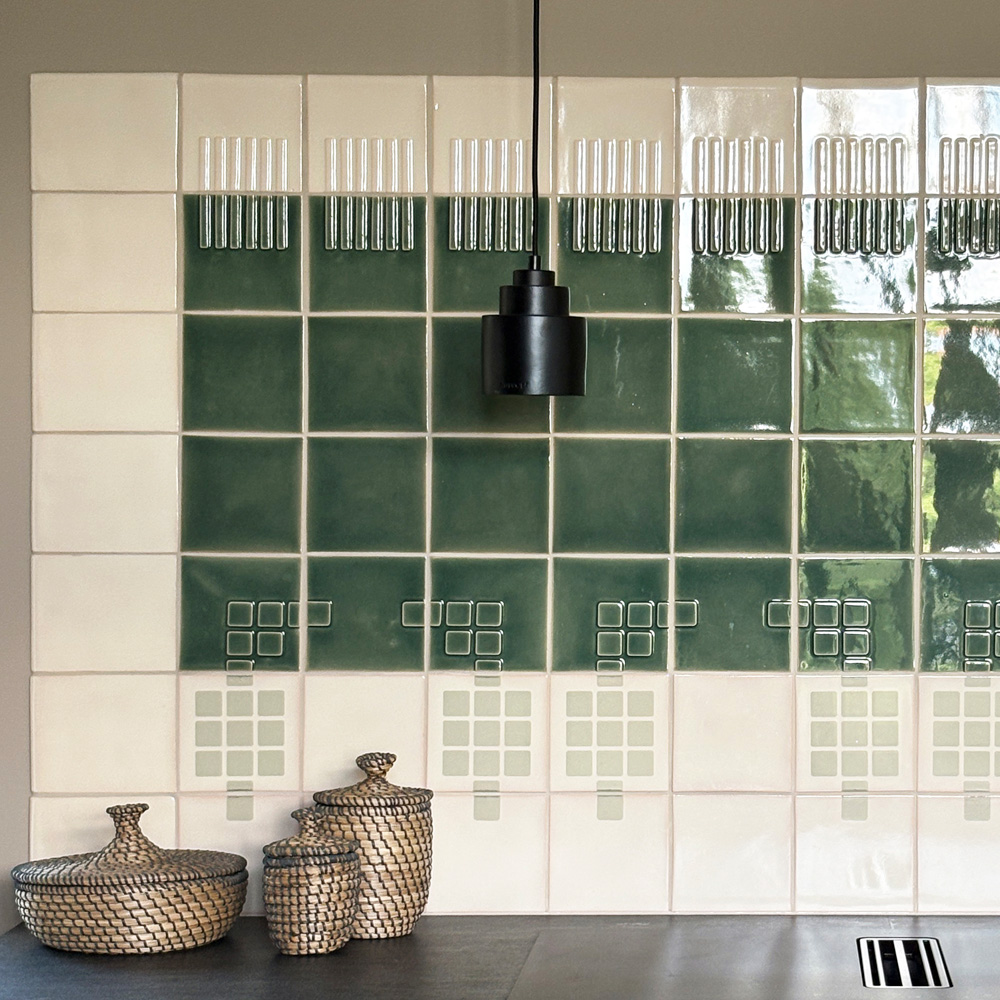

Kitchen wall of white and bottle-green Smink Studio Building Blocks tiles with screen-printed square motifs and a black pendant.
Nine Smink Studio Relief tiles in black, charcoal and grey glazes, each with a raised circle or half-circle catching the light.
Coffee corner backed by red Smink Studio handmade ceramic tiles with half-circle screen-printed colours, against a concrete wall with an espresso machine and red cabinets.
Design: BASIS Bureau für Baukunst @basis_baukunst
Photography: Fotostudio Hohnwald
Four Smink Studio relief tiles in cream, amber and rust glazes with raised angular lines.
Close-up of Smink Studio Relief tiles in deep red and blush pink, combining a raised half-circle Eclipse tile with fluted and plain glazed tiles.
Smink Studio relief tile design for OBZ: blush and tomato-red glazed ceramic tiles with raised concentric arcs.
Potted plants before a wall of white Smink Studio relief tiles with raised lines and arcs.
Minimalist shower niche in blush Smink Studio relief tiles with subtle raised line and circle motifs.
Design: Cathie Hong Interior Design
Photography: @margaretaustin_photo
Smink Studio relief tiles in matte blush and shiny gold lustre glazes, on a kitchen wall with a chopping board.
Interior design @studiobinnen
Photography @chiela.nl
Kitchen of terracotta Smink Studio handmade ceramic tiles with embossed arch and line detailing around a window, with white cabinets and a brass tap.
Smink Studio Relief tiles in B002.
Studio Paradis @studioparadis.design
Photography Rise Visual Media @rise_visual_media
Bar wall of pale green Smink Studio glazed ceramic tiles with a dark green band and screen-printed squares, below floral wallpaper.
Design: Redmond Aldrich Design @redmondaldrichdesign
Photography Nickolas Sargent @sargentphoto
Living room wall of white Smink Studio handmade tiles beside a bookcase, behind a cream sofa.
Interior design: Blanca Rosa Gutiérrez

See more images in Explore

Available tiles

Drawing of a plain pressed Smink Studio tile, P00, with no relief pattern.
P00
Drawing of Smink Studio relief tile P01, with a raised V-shaped line across the top.
P01
Drawing of Smink Studio relief tile P02, with a raised angled line running down the tile.
P02
Drawing of Smink Studio relief tile P03, with a raised half-circle line against one edge.
P03
Drawing of Smink Studio relief tile P04, with a raised quarter-circle line in one corner.
P04
Drawing of Smink Studio relief tile P05, with a large raised quarter-circle line.
P05
Drawing of Smink Studio relief tile P06, with fine raised concentric arcs filling the tile.
P06
Drawing of Smink Studio relief tile P07, with two bands of fine raised vertical lines.
P07
Drawing of Smink Studio relief tile P08, with a row of raised vertical ribs.
P08
Drawing of Smink Studio relief tile P09, with raised concentric arcs from one corner.
P09
Drawing of Smink Studio relief tile P10, with a three-by-three grid of raised rounded squares.
P10
Drawing of Smink Studio relief tile P11, with a sunken half-circle against one edge.
P11
Drawing of Smink Studio relief tile P12, with a grid of raised rounded squares.
P12
Drawing of Smink Studio relief tile P13, with two raised rounded rectangles at top and bottom edges.
P13

Colours

S010
S001
B011
B010
B150
B092
B053
B054
B057
C067
C039
C075
B083
B088
B089
B700
B002
M890
B044
M998
B043
M825
B042
M855
B029
M835
B028
M815

Useful information

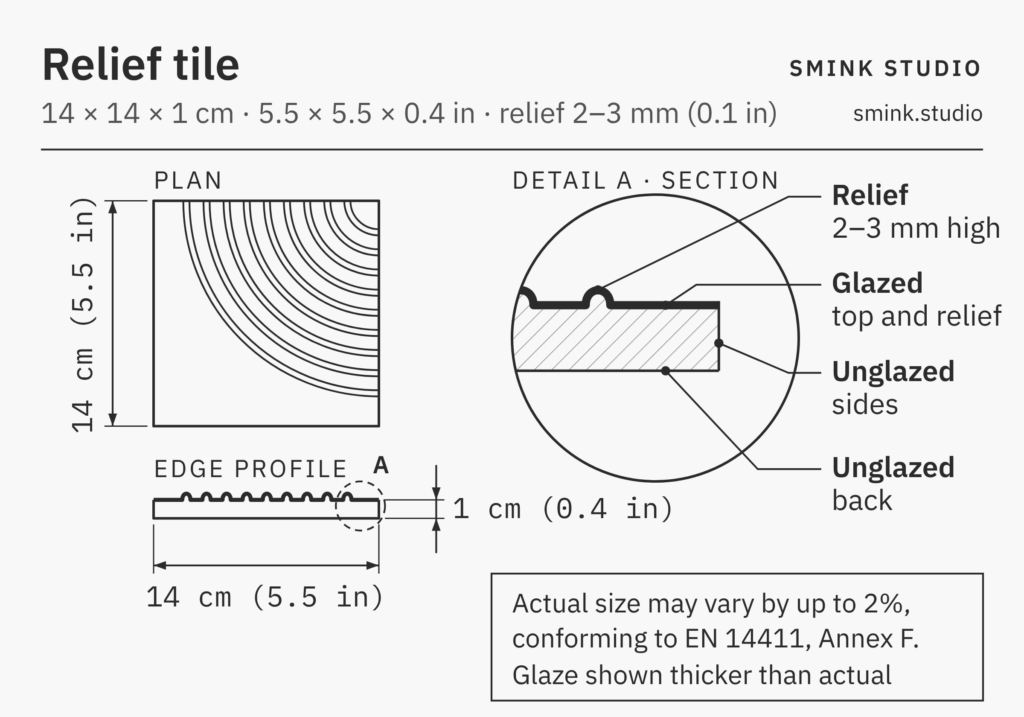

Technical drawing of a 14 × 14 × 1 cm relief tile: plan, edge profile and section showing a 2–3 mm raised pattern, glazed top and unglazed sides and back

  1. Format: 14 × 14 cm / 5.5 × 5.5 in, pressed by hand.
  2. Finish: one solid glaze per tile, gloss or matt.
  3. Uses: panelling, splashbacks, bathrooms and feature walls.
  4. Combining: relief shapes match our screen-printed designs.
  5. Durability: frost- and stain-resistant, confirmed by independent laboratory tests.
  6. Installation: standard adhesive and grout; the grout colour changes how strongly the relief reads.
  7. Care: wipe with a damp cloth and a mild cleaner.

Size
Measurements: approx 14 x 14cm / 5.5 x 5.5 inches. As with all handmade tiles, length and width can vary by up to 2%.
Thickness: 1 – 1.3 cm / 3/8 – 1/2 inch when raised 3D shape included.
50 tiles per m2 / 4.65 tiles per sq. ft.

How they are made
Each tile is made by hand, then pressed one at a time in a hand-operated press while the clay is still soft. Once dry, it is fired, glazed and fired again.

Glazes and designs
There are around 30 core colours on our Relief colour card; other glazes are available on request.
Each tile has one solid glaze.
Minimum 3 m² / 33 sq ft (about 150 tiles) per glaze colour.
Relief tiles cannot be screen-printed, but their shapes match our screen-printed designs, so the two can be combined.
There are fourteen different Relief shapes and a plain pressed tile.

Characteristics
Relief tiles have characteristic differences to mass-produced tiles although they are more regular than our normal tiles because they are pressed. A certain amount of unevenness in the surface and irregularity of the side and corners of the tiles is to be expected. As with unpressed tiles, grout combines all these minor imperfections into one installation which has the look and feel of handmade, hand-pressed tiles.

Uses
Relief tiles suit bathrooms, feature walls, splashbacks and panelling (wainscoting). A row of bullnose tiles finishes the top edge neatly.
